We are a professional supplier of SANY genuine parts, mainly engaged in spare parts for SANY excavators and wheel loaders. The SANY SYL956 wheel loader is equipped with a Cummins QSL8.9 engine and DANA transmission. We can supply full-range complete machine parts for this model.

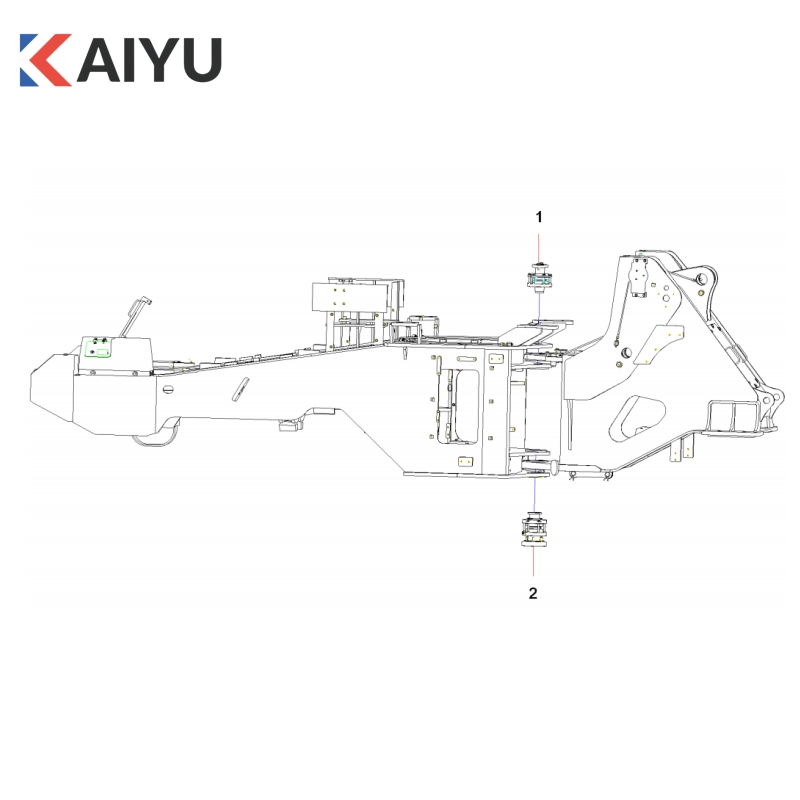

| Index | Part NO. | Part Name | QTY |
| – | 13054732 | Hinged System | 1.0 |
| 1 | 13046191 | Upper Articulation | 1.0 |

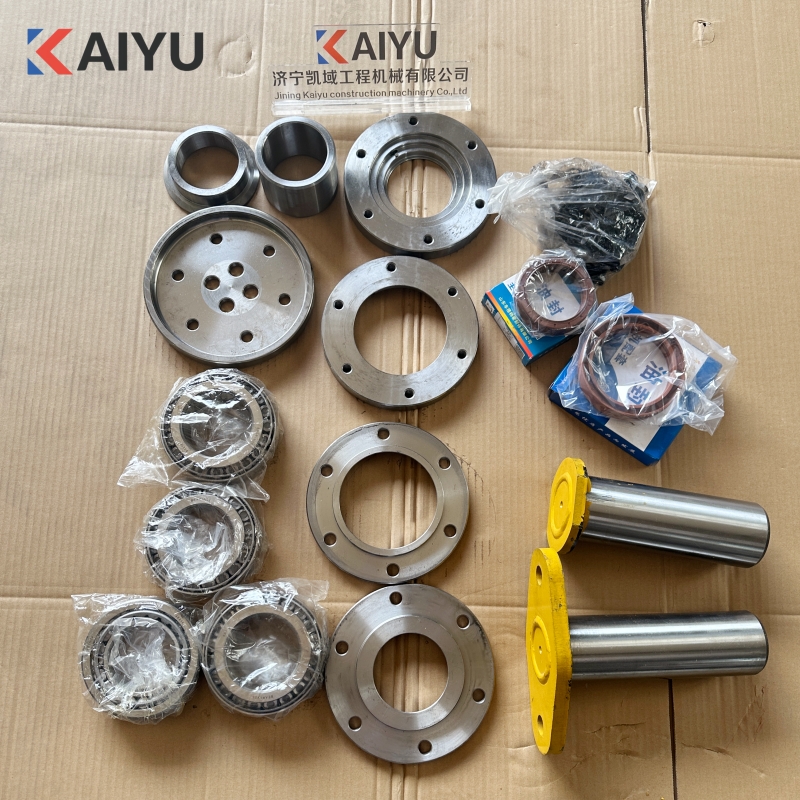

| 2 | 13340262 | Lower Articulation | 1.0 |

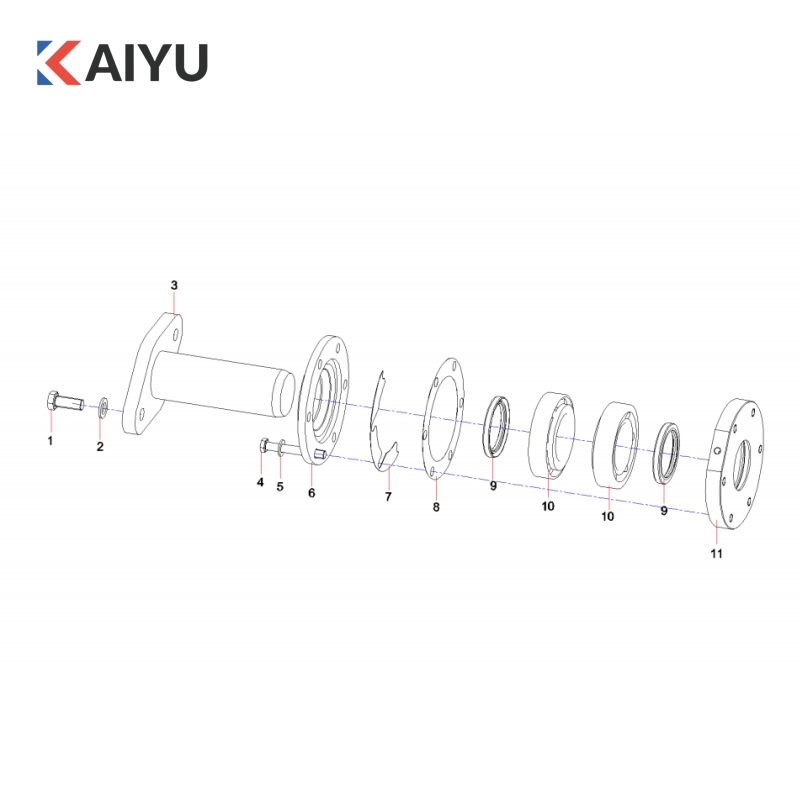

| Index | Part NO. | Part Name | QTY |
| 1 | A210111000053 | Bolt | 2 |
| 2 | 24000642 | Washer | 2 |
| 3 | 13046194 | pinSYL958H1.1.4.1.1 | 1 |
| 4 | A210110000323 | Bolt | 6 |
| 5 | 24000639 | Washer | 6 |
| 6 | 13046187 | upper bearing seatSYL958H1.1.4.1 | 1 |
| 7 | 13046190 | adjusting spacer | 4 |
| 8 | 13046189 | adjusting spacer | 4 |
| 9 | 24002096 | oil seal | 2 |
| 10 | A210604000009 | Rolling bearing | 2 |
| 11 | 13046188 | lower bearing seatSYL958H1.1.4.1 | 1 |

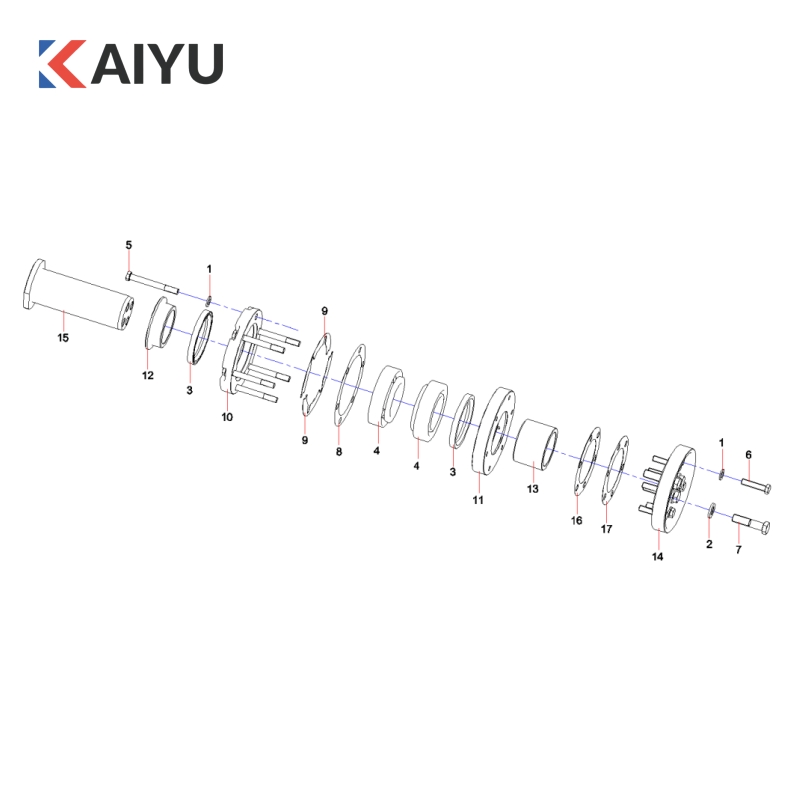

| Index | Part NO. | Part Name | QTY |
| 1 | 24000639 | Washer | 12 |
| 2 | A210491000118 | High-strength steel washer | 4 |
| 3 | 24002816 | oil seal | 2 |
| 4 | 29006091 | bearing | 2 |
| 5 | A210110000384 | Bolt M12×110GB5782 Grade 10.9 | 6 |
| 6 | A210111000118 | Bolt | 6 |
| 7 | A210110000281 | Bolt | 4 |
| 8 | 13340252 | adjusting spacer | 4 |
| 9 | 13340253 | adjusting spacer | 4 |
| 10 | 13340254 | upper bearing seat | 1 |
| 11 | 13340255 | lower bearing seat | 1 |
| 12 | 13340256 | taper sleeve | 1 |
| 13 | 13340257 | bush | 1 |
| 14 | 13340258 | flange plate | 1 |
| 15 | 13340259 | Lock pin | 1 |
| 16 | 13340260 | adjusting spacer | 7 |
| 17 | 13340261 | adjusting spacer | 5 |
