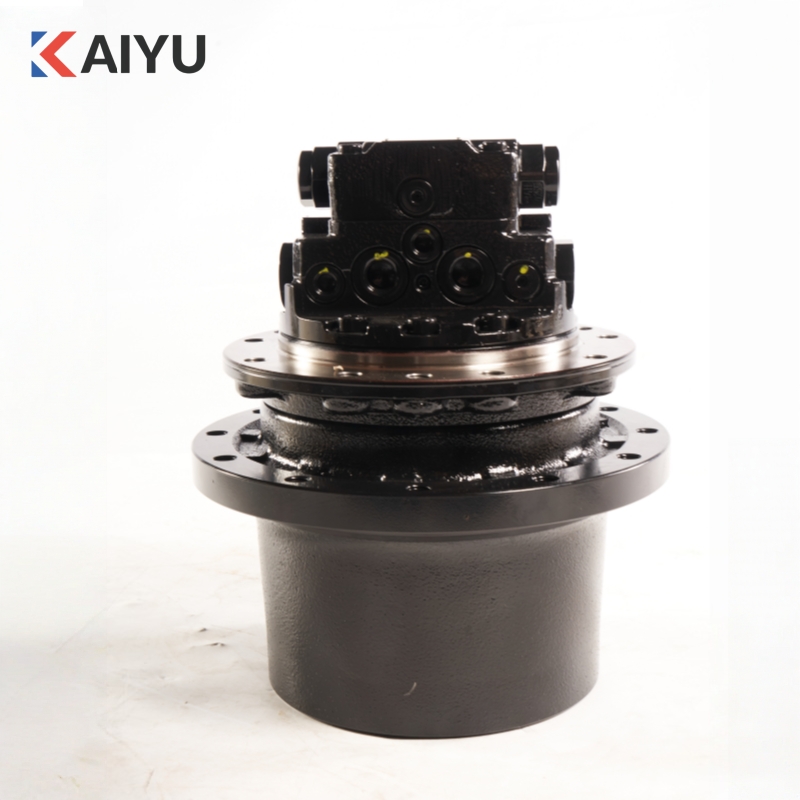

SANY SY55 Excavator Travel Reducer Assembly

Model: PHV-4B-70D Travel reducer assembly

Frame mounting holes: 14-M14

Drive gear mounting holes: 12-M14

N.W. 55KG

We are a supplier of SANY excavator parts.

We can supply full rang parts for SANY SY55 excavator. The SY55 excavator is equipped with the Isuzu 4JG1 engine, Rexroth A10VO71 hydraulic pump, and 8RS12H1X control valve. We specialize in SANY genuine parts.

If you have any demand for SANY excavator parts, please feel free to contact us.

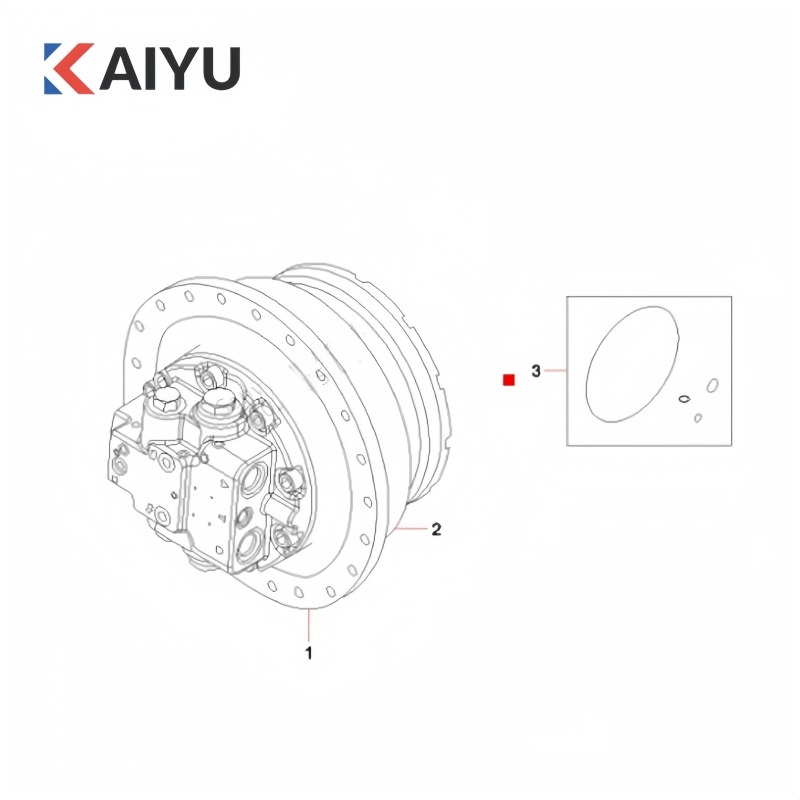

Index	Part Name	Part NO.	QTY
	Travel Reducer Assembly	60166522	1
1	Motor	60216967	1
2	Reducer	60218534	1
3	Repair kit, reducer	60217000	1

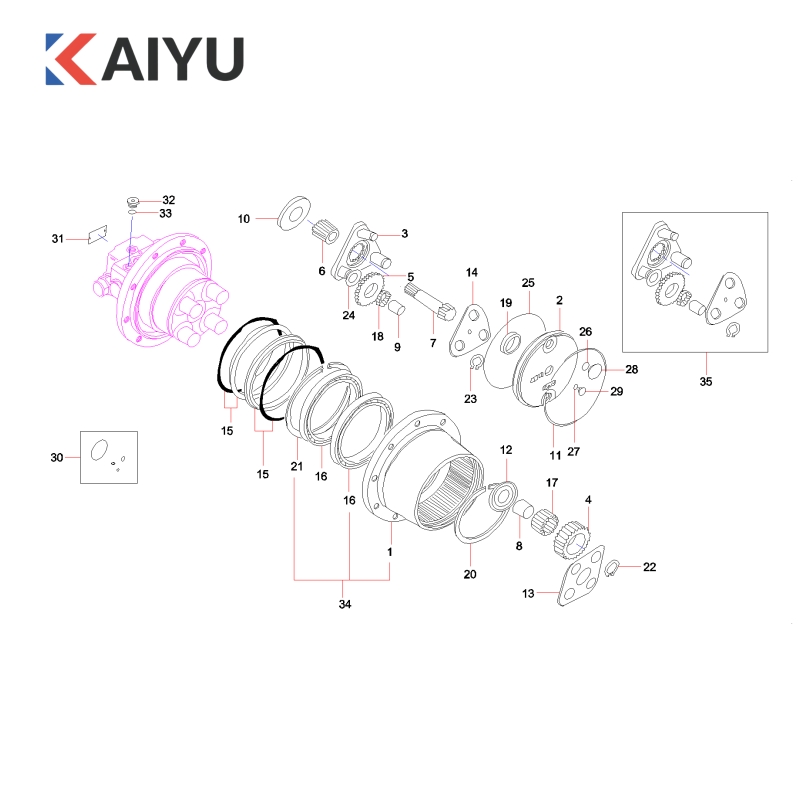

Index	Part Name	Part NO.	QTY
1	Housing	60216948	1
2	Cover, rear	60216949	1
3	Carrier, planetary gear	60216950	1
4	Gear, sun	60216951	4
5	Gear, planetary	60216952	3
6	Gear, sun	60216953	1
7	Gear, sun	60216954	1
8	Bush	60164397	4
9	Bush	60216955	3
10	Washer, lock	60216956	1
11	Ring, steel	60164169	1
12	Plate, thrust	60216957	4
13	Plate, thrust	60216958	1
14	Plate, thrust	60216959	1
15	Seal, floating	60164390	2
16	Bearing	60216960	2
17	Pin, fixing	60164282	136
18	Needle, roller	60216961	69
19	Ring, slide	60216962	1
20	Ring, stop	60216963	1
21	Ring, stop	60216964	1
22	Spring, snap	60167122	4
23	Ring, stop	60216965	3
24	Washer, lock	60216966	3
25	O-ring	60164373	1
26	O-ring	60038799	2
27	O-ring	60038808	1
28	Plug	60164261	2
29	Plug	60164263	1
30	Repair kit, reducer	60164291	1
31	Nameplate	60216968	1
32	Plug	60164262	1
33	O-ring	60038798	1
34	Housing AS	60216969	1
35	Carrier, planetary gear	60216970	1
