Use For: SANY SY485, SY500, SY550, and SY650 excavator
Model: Isuzu 6WG1 engine
Type: 898021-0405, 898022-9751, 8980229751, 8-98022975-1, 8-98021040-5,
We are a specialized supplier of SANY excavator parts. Our extensive product portfolio also includes:
. Complete engines and spare parts for Isuzu, Mitsubishi, and Cummins.
. Kawasaki hydraulic pump assemblies and components
. Kawasaki control valves and related parts.
. Final drives and travel reducer parts from Nabtesco and KYB
. Swing motor assemblies from leading brands such as Kawasaki and Doosan.

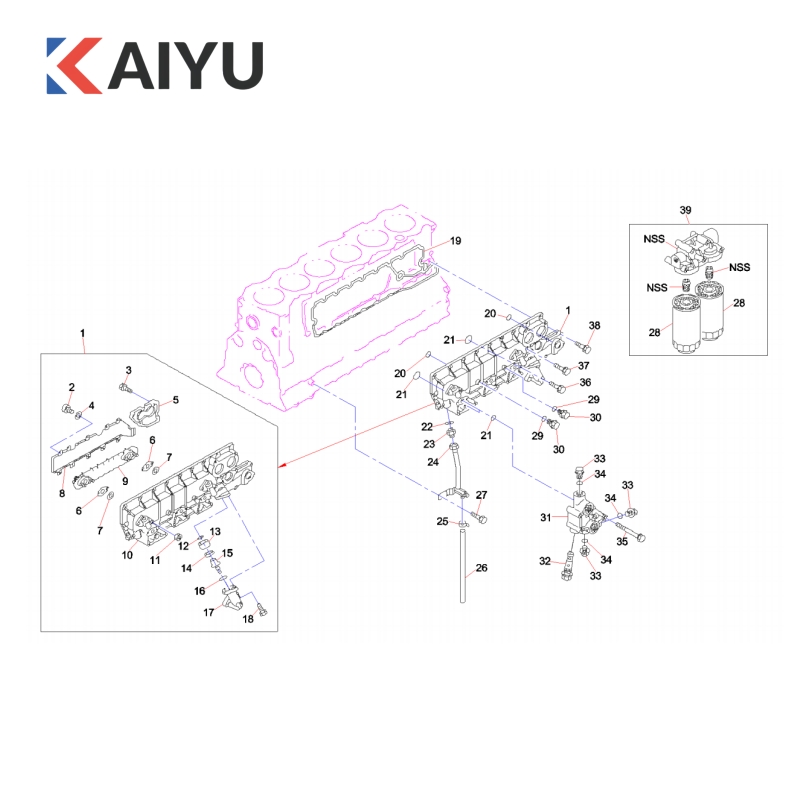

| NO. | NAME | Part NO. | QTY |
| 1 | Cooler asm;oil | 60320084 | 1 |
| 2 | Screw;baffle | 60320111 | 10 |
| 3 | Bolt | B229900004850 | 4 |
| 4 | Washer;water guide | 60320086 | 10 |
| 5 | Cover;thermostat | 60320041 | 1 |
| 6 | Gasket | 60320079 | 2 |
| 7 | Gasket | 60320078 | 2 |
| 8 | Plate; baffle,oil cooler | 60320044 | 1 |

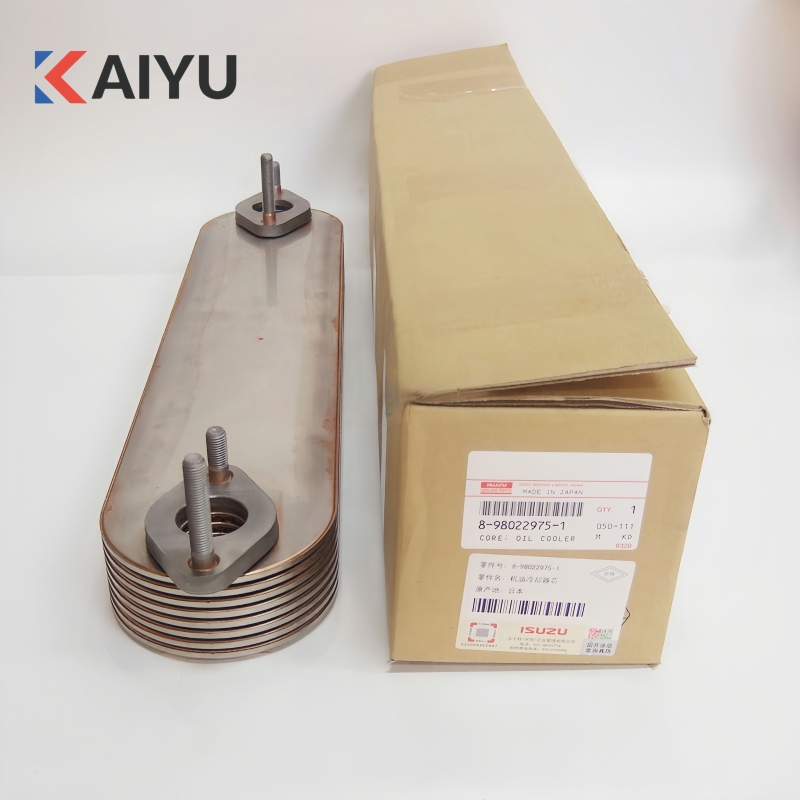

| 9 | Core;oil cooler | 60320085 | 1 |
| 10 | Body;case, oil cooler | 60320040 | 1 |
| 11 | Nut | B229900004800 | 4 |
| 12 | Ring;seal,thermo vlv | 60320047 | 1 |
| 13 | Support;thermostat | 60320043 | 1 |
| 14 | Support;thermostat | 60320045 | 1 |
| 15 | Thermostat;oil cooler | 60320046 | 1 |
| 16 | Gasket;thermostat | 60319958 | 1 |
| 17 | Joint;thermostat | 60320042 | 1 |
| 18 | Bolt;joint;thermostat | 60319948 | 2 |
| 19 | Pad,sealing,cooler,oil | 60016614 | 1 |
| 20 | Gasket;oil cooler to c/bl | 60319961 | 2 |
| 21 | Gasket | 60319962 | 4 |
| 22 | Gasket;drain | 60319964 | 1 |
| 23 | Connector;water | 60319966 | 1 |
| 24 | Pipe;water drain | 60319993 | 1 |
| 25 | Clip | 60320058 | 1 |
| 26 | Hose | 60007945 | 1 |
| 27 | Bolt,flange | B229900004886 | 1 |
| 28 | Element, filter | 23991450 | 2 |
| 29 | Shim | B229900004536 | 2 |
| 30 | Plug | 60311937 | 2 |
| 31 | Cover;oil port | 60319990 | 1 |
| 32 | Valve;relief | 60319986 | 1 |
| 33 | Pulg;oil drain | 60319955 | 3 |
| 34 | Gasket | 60319957 | 3 |
| 35 | Bolt | B229900004891 | 4 |
| 36 | Bolt;oil cooler | 60319940 | 1 |
| 37 | Bolt;oil cooler | 60320061 | 8 |
| 38 | Bolt 028151-0300 M10x30 flange | 60311998 | 17 |
| 39 | oil filter | 60250932 | 1 |
Category: SY485/500/550 excavator spare parts
