Use For: SANY SY485, SY500, SY550, SY650, and SY750 excavator
Model: Isuzu 6WG1 Engine
Type: B249900001066, 160102080024B007, 113660-3321, 1136603321, 1-13660332-1,

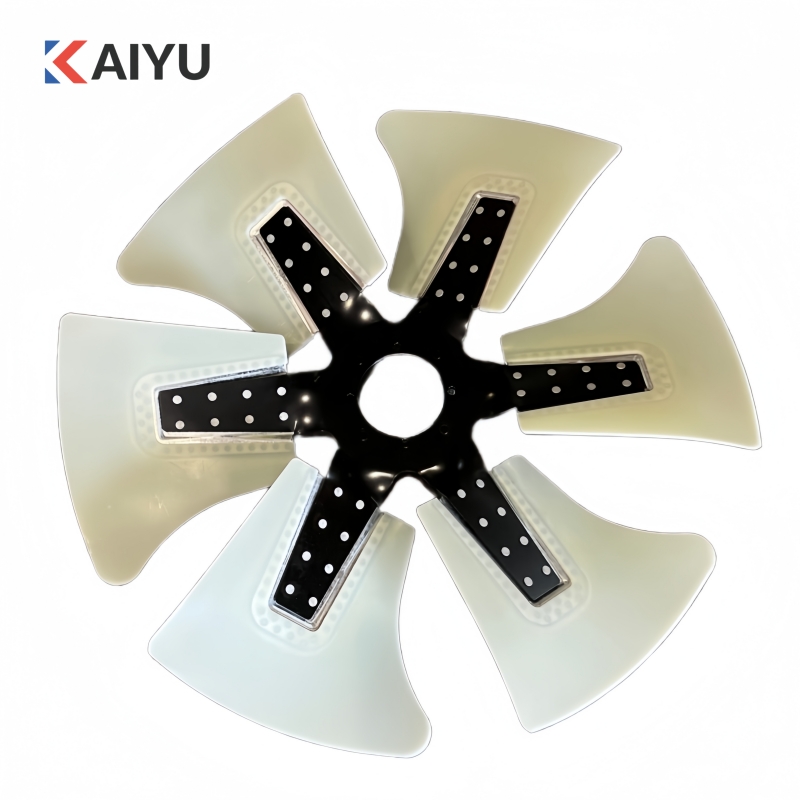

The fan for Isuzu 6WG1 engine. Supplier of engine fans for SANY excavators. SANY SY485, SY500, SY550, SY650, and SY750 excavators are equipped with the Isuzu 6WG1 engine. We can supply both genuine original fan and high-quality aftermarket fan. For this engine, in addition to providing genuine parts, we can also supply complete original engine assemblies.

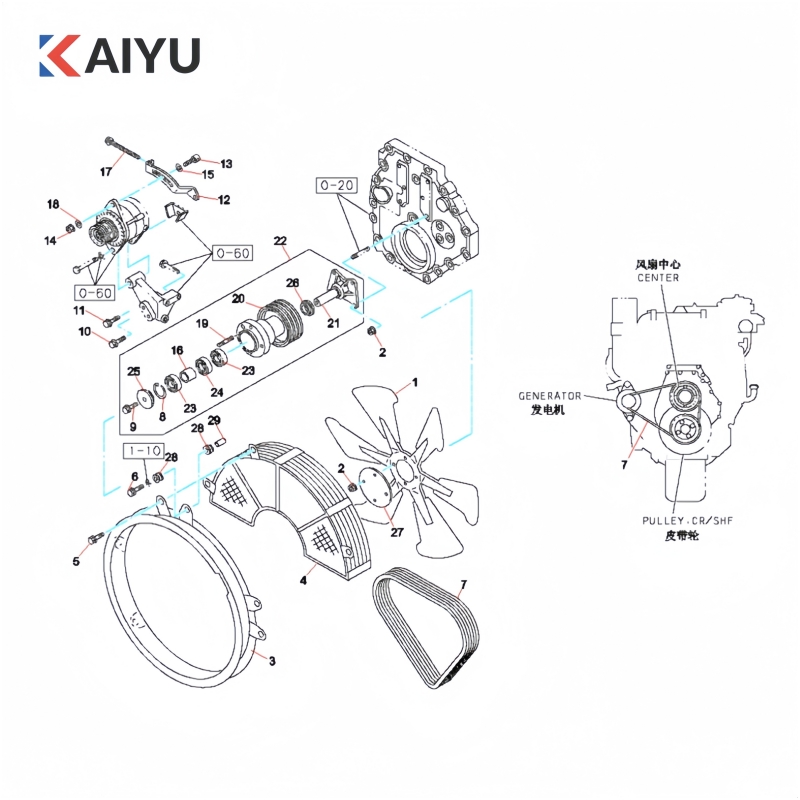

| Index | Part Name | Part NO. | QTY |
| 1 | Fan | B249900001066 | 1 |
| 2 | Nut 091180-1100 M10 flange | B229900004800 | 8 |
| 3 | Guard AS, Fan | B229900004325 | 1 |
| 4 | Guard AS, Fan | B229900004326 | 1 |
| 5 | Bolt M10×45 | B229900004861 | 3 |
| 6 | Bolt 028651-0250 M8x25 flange | B229900004901 | 3 |
| 7 | Belt;cooling fan | 60320427 | 1 |
| 8 | Ring;snap | 60320428 | 1 |
| 9 | Bolt;pulley | 60320429 | 1 |
| 10 | Bolt,flange M10×20 | B229900004886 | 1 |
| 11 | Bolt;adj plate,gen(b) | 60320430 | 1 |
| 12 | Plate;adj | 60320431 | 1 |
| 13 | Screw | B229900004786 | 1 |
| 14 | Nut | B229900004801 | 1 |
| 15 | Washer | B229900004598 | 1 |
| 16 | Spacer | 60320432 | 1 |
| 17 | Bolt 109009-1141 M10x155 | B229900004925 | 1 |
| 18 | Washer;pl,adj plate | 60320433 | 1 |
| 19 | Stud 044011-0300 M10x30 L=45 | 60311993 | 4 |
| 20 | Pulley;fan center | 60320434 | 1 |
| 21 | Body;fan center | 60320435 | 1 |
| 22 | Center asm;fan | 60320441 | 1 |
| 23 | Bearing;ball,fan pulley(a) | 60320436 | 2 |
| 24 | Bearing;ball,fan pulley(b) | 60320437 | 1 |
| 25 | Cover;dust(a) | 60320438 | 1 |
| 26 | Cover;dust(b) | 60320439 | 1 |
| 27 | Cover;dust(c) | 60320440 | 1 |
| 28 | Rubber pad | B230102000040 | 6 |
| 29 | Tube | 60311215 | 3 |
Category: SY485/500/550 excavator spare parts
