Use For: SANY SY485, SY500, and SY550 excavator
Model: Isuzu 6WG1 Engine
Type: 112511-2552, 1-12511255-2, 1-12511162-4, 1-12511162-4, 1-12610080-2
We are a supplier of engine parts for SANY excavators. For models SY485, SY500, and SY550 powered by the Isuzu 6WG1 engine, we provide genuine Isuzu OEM parts.

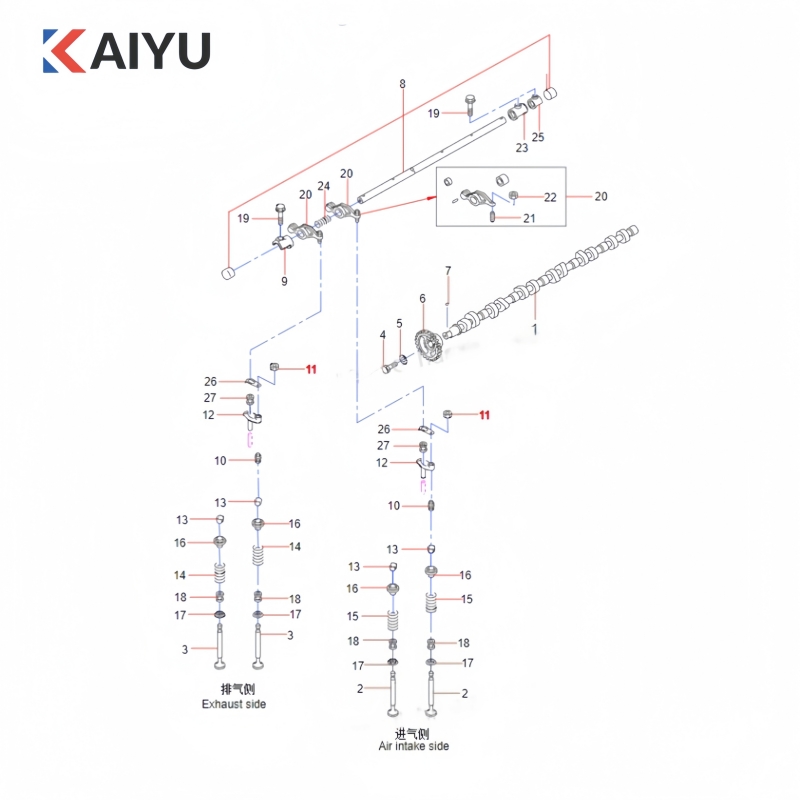

| Index | Part Name | Part NO. | QTY |
| 1 | Camshaft | 60016650 | 1 |
| 2 | Valve;inl | 60320271 | 12 |
| 3 | Valve;exh | 60320272 | 12 |
| 4 | Bolt | B229900004959 | 1 |
| 5 | Washer | B229900004632 | 1 |
| 6 | Gear;cm/shf | 60320273 | 1 |
| 7 | Key | B229900004340 | 1 |
| 8 | Shaft;rocker arm | 60320274 | 1 |
| 9 | Bracket;rocker shaft,frt | 60320275 | 1 |
| 10 | Screw;adj,bridge | 60320276 | 12 |
| 11 | Nut;adj screw lk bridge | 60320277 | 12 |
| 12 | Bridge | 60320278 | 12 |
| 13 | Collar;split | 60320279 | 48 |
| 14 | Air valve spring | 60016640 | 12 |
| 15 | Spring;vlv inl | 60320280 | 12 |
| 16 | Seat;spr | 60320281 | 24 |
| 17 | Seat;spr | 60320282 | 24 |
| 18 | Seal;vlv guide | 60320283 | 24 |
| 19 | Bolt;brkt | 60320284 | 7 |
| 20 | Arm;rocker | 60320285 | 12 |
| 21 | Air valve adjustment screw | 60016642 | 12 |
| 22 | Nut | 60154087 | 12 |
| 23 | Bracket;rocker shaft,inter | 60320286 | 5 |
| 24 | Spring;rocker shaft | 60320287 | 6 |
| 25 | Bracket;rocker shaft,rr | 60320288 | 1 |
| 26 | Bolt 028151-0400 M10x40 flange | B229900004888 | 3 |
| 27 | Bolt;thrust collar(b) | 60320289 | 6 |
| 28 | Bolt;crankcase m12x114 | 60320252 | 3 |
| 29 | Dowel;shaft | 60320290 | 1 |
| 30 | Shaft;idle gear(a) | 60320291 | 1 |
| 31 | Shaft;idle gear(b) | 60320292 | 1 |
| 32 | Shaft;idle gear(c) | 60320293 | 1 |
| 33 | Collar;thrust,idle gear(a) | 60320294 | 1 |
| 34 | Collar;thrust,idle gear(b) | 60320295 | 1 |
| 35 | Gear;idle(a) | 60320296 | 1 |
| 36 | Gear;idle(b) | 60320297 | 1 |
| 37 | Bushing;idle gear(a) | 60320298 | 1 |
| 38 | Bushing;idle gear(b) | 60320299 | 1 |
| 39 | Cap;adj,screw | 60320300 | 12 |
| 40 | Plate; cap | 60320301 | 12 |
