We supply top-quality buckets for SANY excavators and can customize them according to your specific requirements.

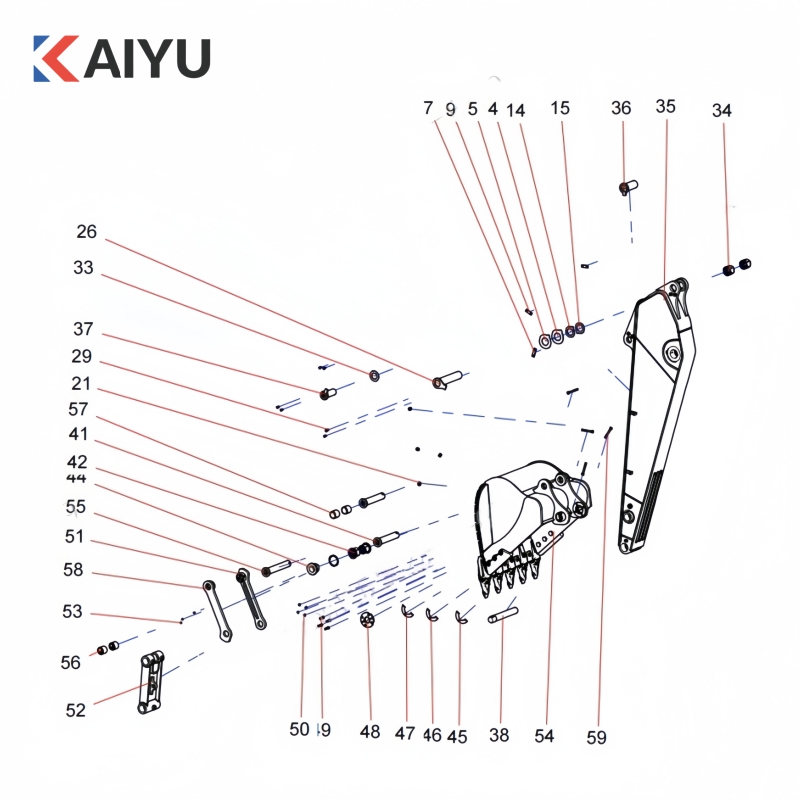

| INDEX | PART NO | DESCRIPTION 00 | QTY |
| 4 | 11078548 | Resin spacer | 4 |
| 5 | 11561637 | Resin Spacer | 4 |
| 7 | A820101211702 | Clamp | 1 |
| 9 | A820101211710 | Clamp | 3 |
| 14 | 11078567 | Resin spacer | 2 |
| 15 | 11169586 | Resin spacer | 2 |
| 21 | A210307000029 | Nut | 12 |
| 26 | 12740454 | Pin | 1 |
| 29 | A210111000212 | Bolt | 14 |
| 33 | A820102010387 | Spacer | 24 |
| 34 | 13840155 | Bushing | 2 |
| 35 | 12689367 | Arm | 1 |
| 36 | A810303990035 | Pin | 1 |
| 37 | A810303990033 | Pin | 1 |
| 38 | 11945933 | Lock pin | 1 |
| 41 | A810303990032 | Pin | 2 |
| 42 | 13840151 | Bushing | 2 |
| 44 | A820403000465 | Sleeve.pressure | 1 |
| 45 | 11945936 | Adjusting spacer | 4 |
| 46 | 11945934 | Adjusting spacer | 4 |
| 47 | 11945935 | Adjusting spacer | 4 |
| 48 | 11904436 | Plate | 1 |
| 49 | A210110000172 | Bolt | 4 |
| 50 | 24000515 | Washer | 4 |
| 51 | 11267311 | Left jiggle bar | 1 |
| 52 | 11789611 | Connecting bar | 1 |
| 53 | B229900000686 | Oil Cup | 7 |
| 54 | 12002883 | Bucket | 1 |
| 55 | A810303990031 | Pin | 1 |
| 56 | A820202003320 | Bushing | 2 |
| 57 | A820202003321 | Bushing | 2 |
| 58 | 11267298 | Right jiggle bar | 1 |
| 59 | A210110000352 | Bolt | 4 |
Tags: 12002883
Category: SY285toSY415 excavator spare parts
