We offer a complete line of components for SANY loaders, including transmission parts and full-machine spare parts.

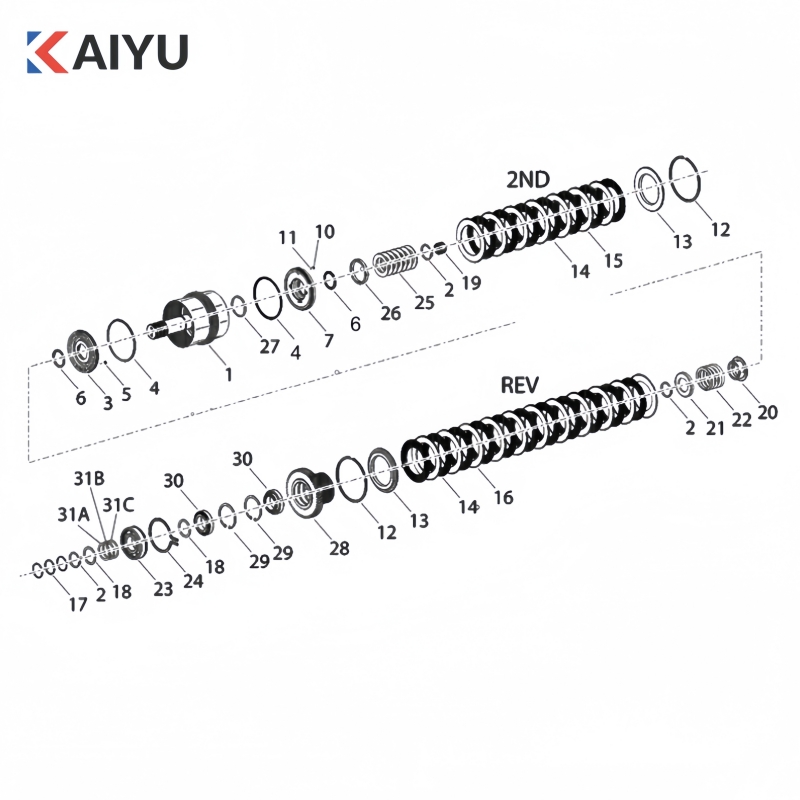

| Index | Part NO. | Part Name | QTY |
| – | 130202000074B022 | Reverse Second Gear Clutch Component | 1.0 |

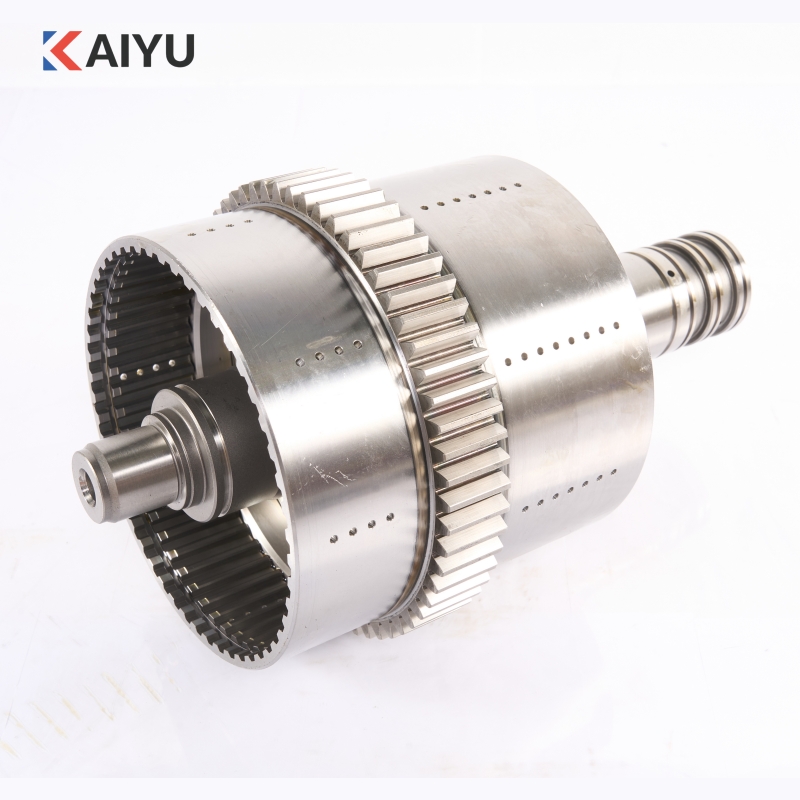

| 1 | 130202000074B043 | Reverse Second Gear Clutch Assembly | 1.0 |
| 2 | 60272266 | Ring, Snap | 3.0 |
| 3 | 130202000074B037 | Piston Assembly | 1.0 |
| 4 | 60272236 | Oil Seal | 2.0 |
| 5 | 60229927 | Filter Screen | 1.0 |
| 6 | 130202000074B038 | Sealing Ring | 2.0 |
| 7 | 130202000074B039 | Piston Assembly | 1.0 |
| 12 | 60272237 | Ring, Snap | 2.0 |
| 13 | 60272238 | Pressure Plate | 2.0 |
| 14 | 60272239 | Brake Pad | 18.0 |
| 15 | 60272240 | Steel Piece | 7.0 |
| 16 | 60272253 | Steel Piece | 11.0 |
| 17 | 60272241 | Sealing Ring | 3.0 |
| 18 | 60272242 | Thrust Pad | 2.0 |
| 19 | 60272267 | Bearing | 1.0 |
| 20 | 60272243 | Holding Support | 1.0 |
| 21 | 60272286 | Holding Support | 1.0 |
| 22 | 130202000074B040 | Spring | 1.0 |
| 23 | 60272254 | Bearing | 1.0 |
| 24 | 60272245 | Ring, Snap | 1.0 |
| 25 | 130202000074B042 | Disc Spring Assembly | 1.0 |
| 26 | 60272279 | Holding Support | 1.0 |
| 27 | 60272278 | Oil Seal | 1.0 |
| 28 | 130202000106A028 | Forward Gear & Bearing Assembly | 1.0 |
| 29 | 60272249 | Ring, Snap | 2.0 |
| 30 | 130202000074B004 | Tapered Roller Bearing | 2.0 |
| 31 | 60272250 | Spacer, Adjusting | 10.0 |
| 32 | 60272251 | Spacer, Adjusting | 10.0 |
| 33 | 60272252 | Spacer, Adjusting | 10.0 |
