SANY Excavator air conditioning pipe

Use For：SANY Excavator

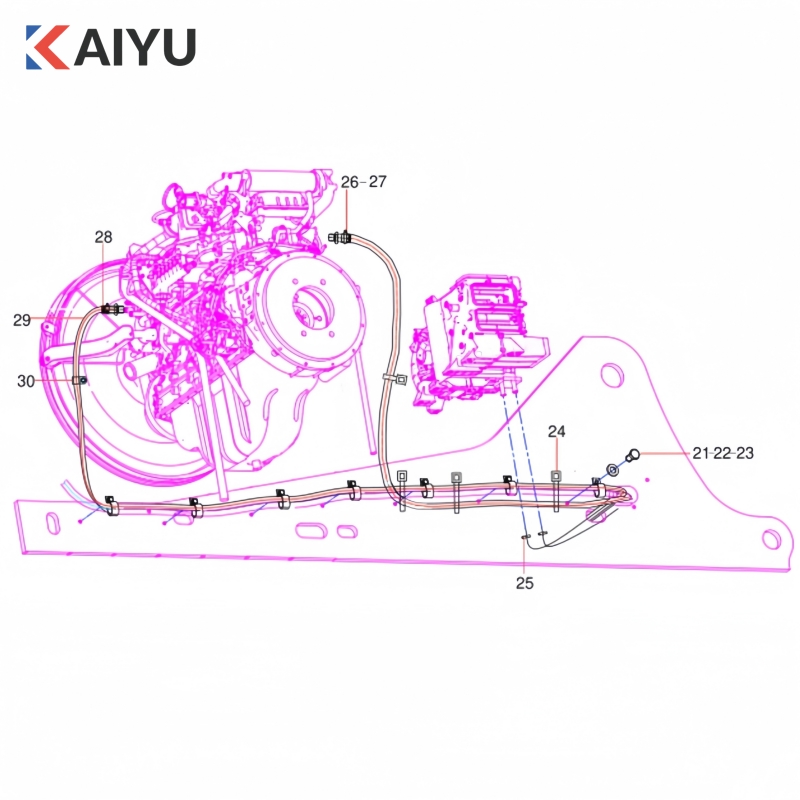

Index	Part NO.	Part Name	QTY
–		Air Conditioning System	1.0
27	10453599	Fitting	1.0
29	10472124	Steam Hose	1.0
26	10472127	Steam Hose	1.0
40		Electrical Systems for Air Conditioning	1.0
35	11779657	Rubber Sleeve	2.0
42	11907017	Inner Air Filter Element Gland	1.0
43	11908118	Inner Air Filter Element Gasket	1.0
18	12632783	Compressor Bracket	1.0
28	12876535	Pipe Joint	1.0
14	13356163	Left Bracket	1.0
1	13521609	Bracket	1.0
45	13626481	Rear Cover Plate Assembly	1.0
41	13626490	Front Cover Plate	1.0
5	14150470	right bracket	1.0
36	24000632	Washer	7.0
15	24000633	Washer	7.0
33	24002251	Screw	1.0

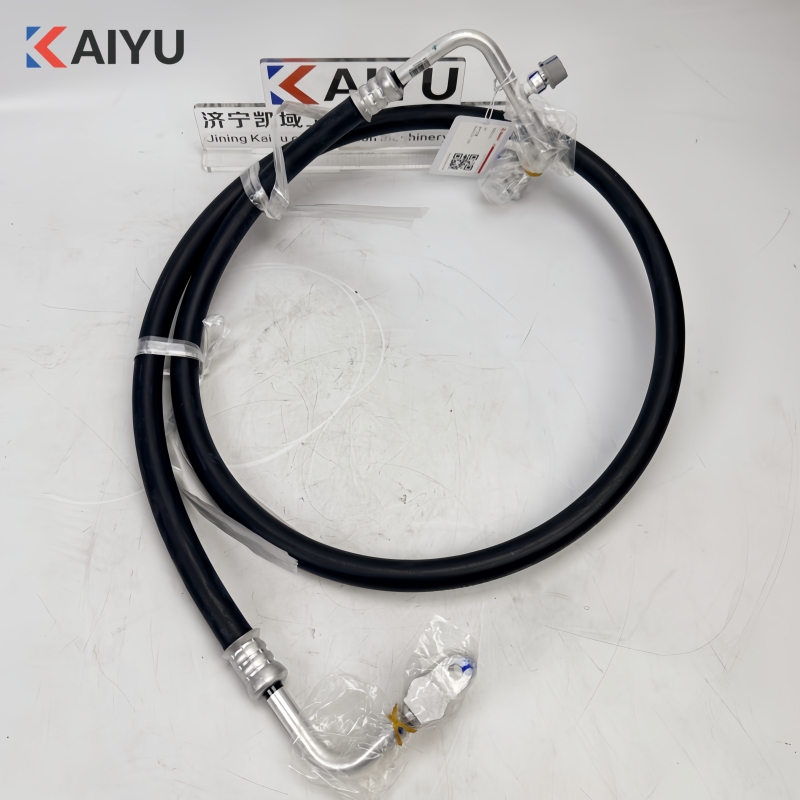

6	60001233	Exhaust Hose	1.0

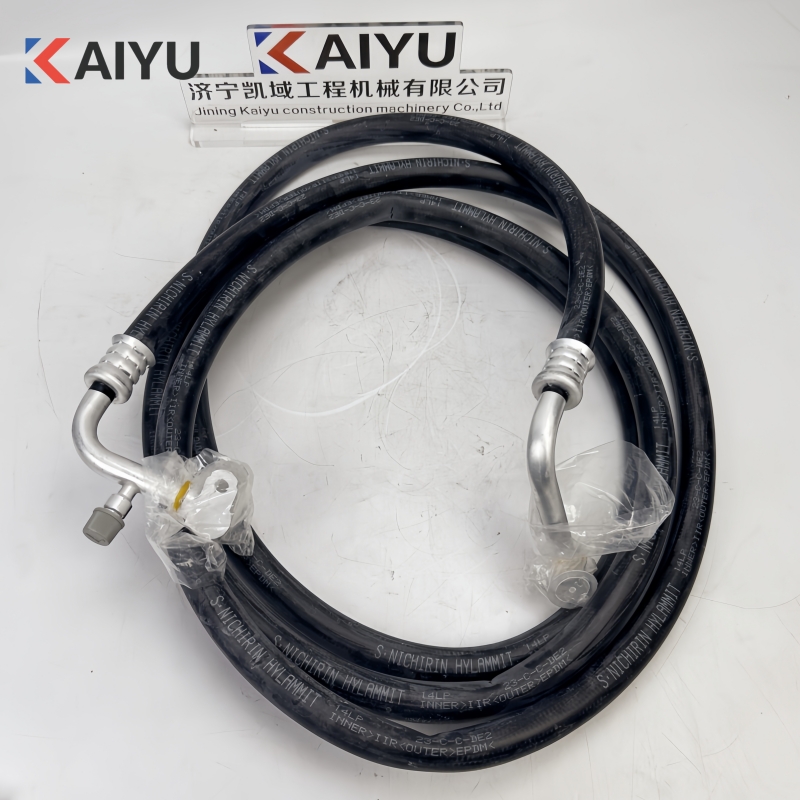

32	60001235	Suction Hose	1.0

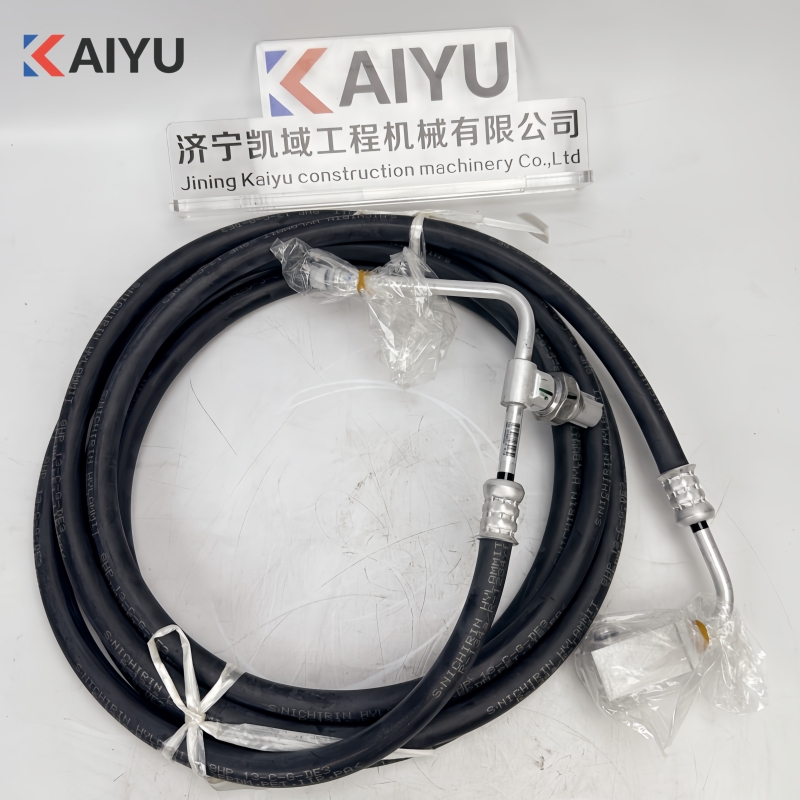

31	60001239	Liquid Rubber Hose	1.0
17	60009582	Tension Pulley	1.0
3	60060546	Washer	4.0
13	60060565	Washer	4.0
30	60086355	Harness Fixing Clamp	3.0
23	60119587	Harness Fixing Clamp	5.0
25	60166393	Steel Band-style Elastic Clamp	4.0
7	60167256	Condenser to Receiver Drier Hose	1.0
46	60168171	Evaporator	1.0
34	60250668	Pressure Plate Connector	1.0
47	60250669	External Air Filter	1.0
4	A210111000012	Bolt	4.0
10	A210111000081	Bolt	4.0
37	A210111000082	Bolt	2.0
12	A210111000092	Bolt	4.0
21	A210111000199	Bolt	22.0
39	A210111000323	Bolt	7.0
2	A210111000342	Bolt	1.0
19	A210491000120	Washer	4.0
22	A210491000121	Washer	22.0
11	A220700000028	Condenser	1.0
8	A229900008784	Liquid Reservoir Support	1.0
38	A229900009481	Drain Pipe	1.0
20	A230106000321	V-belt	1.0
24	A239900000066	Zip Tie	14.0
16	B220203000007	Compressor	1.0
44	B222100000711	Internal Air Filter	1.0
9	B229900005141	Liquid Reservoir	1.0
