Use For：SY215 SY225
Type：STC190MB-6047
Weight：1170KG
Size：135*135*70cm

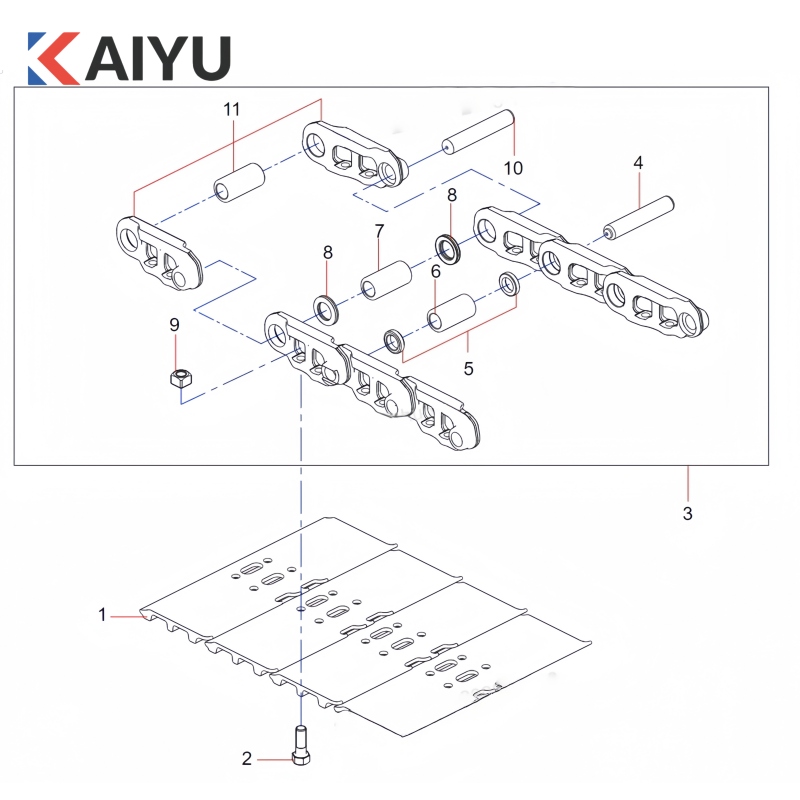

| Index | Part NO. | Part Name | QTY |
| – | 12233707 | Crawler Assembly | 2 |
| 1 | 12502784 | Track Shoe | 47 |
| 2 | 60051464 | Bolt | 188 |
| 3 | 12233708 | Track Link Assembly | 1 |
| 4 | 12110566 | Main Pin Shaft | 1 |
| 5 | 12372220 | Main Sealing Ring | 2 |
| 6 | 13156416 | Track Main Pin Sleeve | 1 |
| 7 | 12917164 | Track Pin Sleeve | 46 |
| 8 | 60173182 | LD Sealing Ring | 92 |
| 9 | 60110067 | Nut | 188 |
| 10 | 12110568 | Pin Shaft | 46 |
| 11 | 12387733 | Track Unit | 47 |
