USE FOR: SANY SY245H excavator oil cylinder，SANY excavator oil cylinder supplier

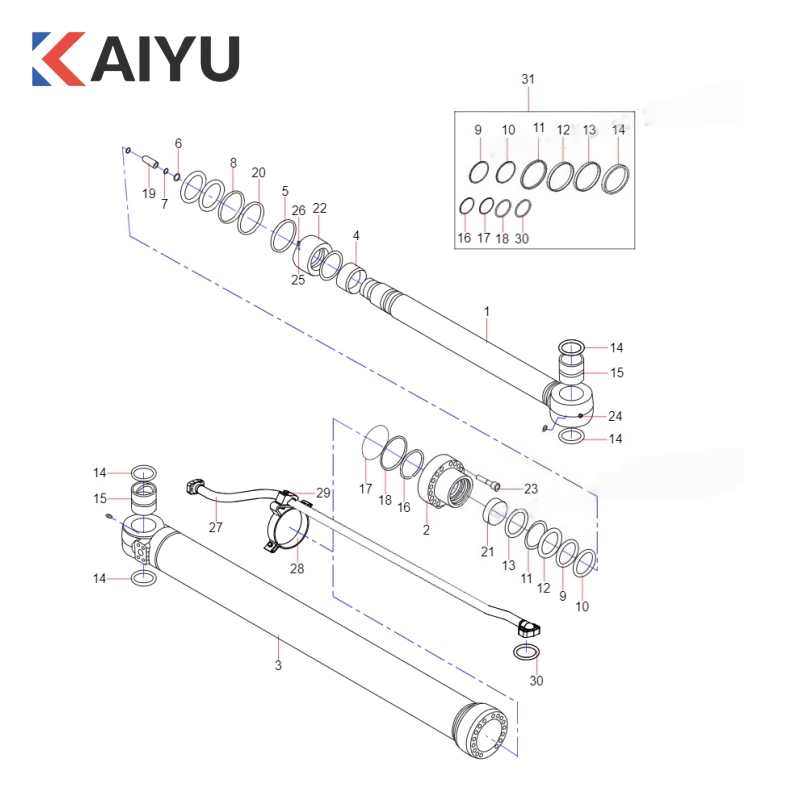

| INDEX | PARTNO | DESCRIPTION | QTY |

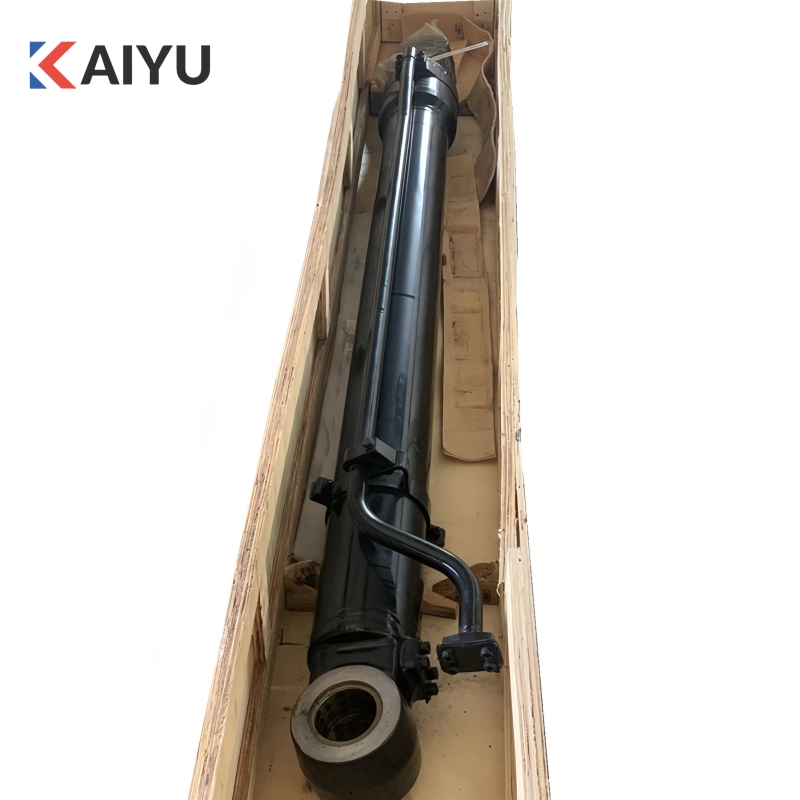

| – | 60270962 | Arm Cylinder Assembly | 1.0 |
| 25 | 21010039 | Steel Ball | 1.0 |
| 23 | 60022043 | Screw | 12.0 |
| 14 | 60044361 | Dust Ring | 4.0 |
| 7 | 60065195 | Rear Buffer Sleeve | 1.0 |
| 13 | 60065204 | Buffer Ring | 1.0 |
| 4 | 60065206 | Buffer Sleeve | 1.0 |
| 6 | 60065213 | Collar | 1.0 |
| 5 | 60065218 | Pollution Acceptance Ring | 2.0 |
| 18 | 60065236 | O-ring | 1.0 |
| 26 | 60065239 | Socket End Screw | 1.0 |
| 10 | 60065242 | Retainer Ring | 1.0 |
| 19 | 60065346 | Buffer Ring | 1.0 |
| 31 | 60107390 | 23T arm cylinder service kit | 1.0 |
| 16 | 60153990 | Retaining Ring | 1.0 |
| 21 | 60154009 | Sliding Shaft Sleeve | 1.0 |
| 12 | 60154022 | E-ring | 1.0 |
| 11 | 60154049 | Shaft Seal Ring | 1.0 |
| 24 | 60169622 | Oil Cup | 2.0 |
| 17 | 60174491 | O-ring | 1.0 |
| 20 | 60174497 | Forming Guide Ring | 2.0 |
| 9 | 60183937 | Dust Ring | 1.0 |
| 1 | 60201095 | Piston Rod | 1.0 |
| 2 | 60201096 | End Cover | 1.0 |
| 3 | 60201097 | Cylinder Bore | 1.0 |
| 8 | 60201100 | Hole Sealing Ring | 1.0 |
| 15 | 60201101 | C-type Shaft Sleeve | 4.0 |
| 22 | 60201113 | Piston | 1.0 |
| 29 | 60307389 | Board | 1.0 |
| 27 | 60307396 | Oil Pipe Assembly A | 1.0 |
| 28 | 60307397 | Pipe Clamp Assembly A | 1.0 |
| 30 | B230101000215 | O-ring | 1.0 |
Category: SY245/265 excavator spare parts
