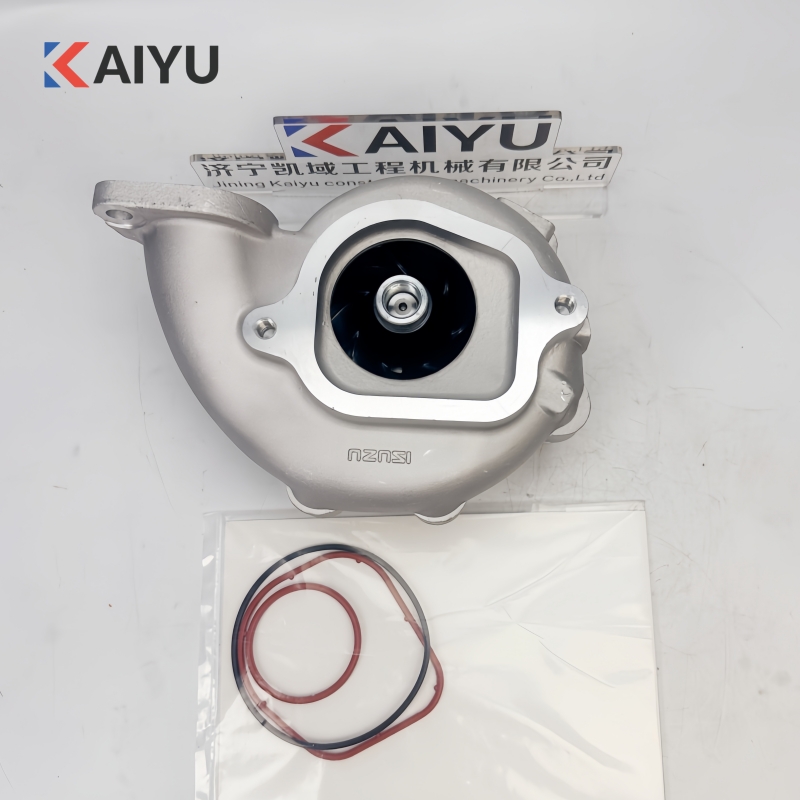

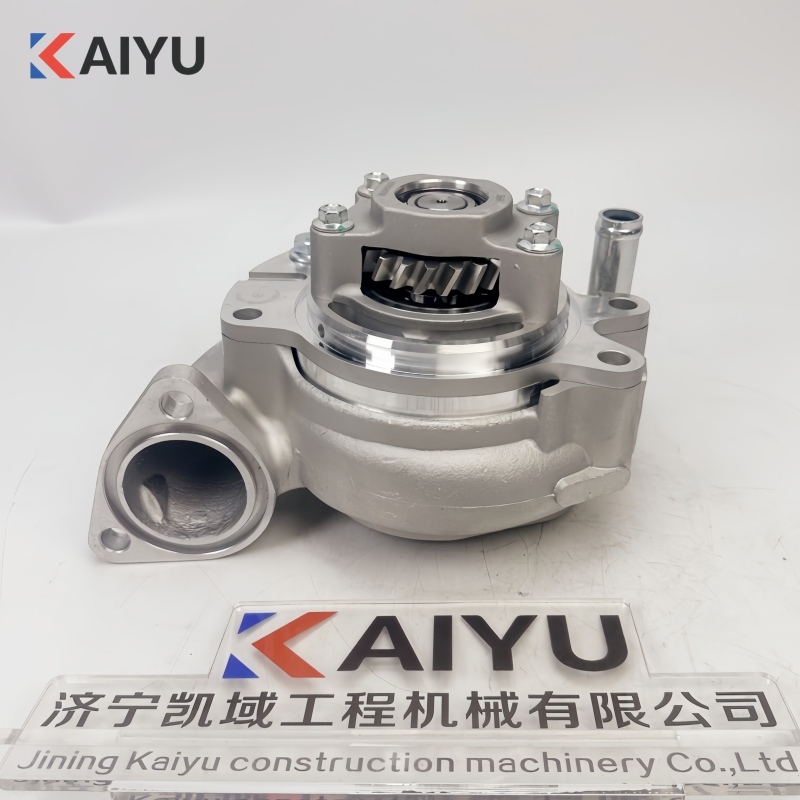

SANY SY500 Excavator Water Pump

USE FOR: SANY SY485 SY500 SY550 excavator，

Model: Isuzu 6WG1 engine

Part NO. 60320384, 187310-9980, 1-87310998-0, 1873109980, 1876184700, 1-87618470-0,

The water pump for Isuzu 6WG1 engine. Supplier of engine water pump for SANY excavators. SANY SY485 to SY750 excavators use the Isuzu 6WG1 engine. We can provide genuine parts for this engine as well as complete engine assemblies.

Index	Part NO.	Part Name	QTY
1	Thermostat	60320398	1
2	Housing;thermostat	60320399	1
3	Bolt,flange M10×25	B229900004887	7
4	Ring;seal	60320400	2
5	Bolt;thrust collar(b)	60320289	2
6	Bolt;outlet pipe(b)	60320401	4
7	Plug;sensor hole	60320356	1
8	Spacer	B229900004534	1
9	Gasket;outlet pipe(a)	60320402	1
10	Gasket;outlet pipe(b)	60320403	1
11	Gasket;thermostat hsg(a)	60320404	1
12	Gasket;thermostat hsg(b)	60320405	1
13	Plug	B229900004670	1
14	Tube	B229900004300	1
15	Switch, water temperature	B241200001054	1
16	Gasket;water pump	60320396	1
17	Seal;oil,water pump	60320389	1
18	Gasket;cover to body	60320392	1
19	Shaft;water pump	60320394	1
20	Seal unit;water pump	60320390	1
21	Impeller;water pump	60320391	1
22	Gasket;pump to c/bl	60320385	1
23	Repair kit;water pump	60320386	1
24	Bolt M8×40	B229900004855	4
25	Bearing;water pump(b)	60320388	1
26	Gear;water pump,drive	60320397	1
27	Bearing;water pump(a)	60320387	1
28	Bolt,flange M10×20	B229900004886	1
29	Cover;water pump	60320393	1
30	Joint;htr hose,water pump(a)	60320395	2
31	Tube	B229900004300	1
32	Plug	60003283	1
33	Pump asm;water,w/gasket	60320384	1
34	Bolt 028151-0900 M10x90 flange	B229900004892	3
35	Bolt;gear case	60320327	1
36	Clip; harness	60320064	1
37	Shim	B229900004536	2
38	Shim	B229900004536	1
39	Tube	B229900002620	1
40	Bolt	B210199000025	1
