USE FOR: SANY SY485 SY500 SY550 SY650 SY750 excavator spare parts
Model: Isuzu 6WG1 Engine
Type: 112310-7152, 1-12310715-2, 1-12310715-1,
We supply genuine Isuzu 6WG1 engine crankshafts, compatible with SANY excavators including the SY485, SY500, and SY550 models. In addition to engine parts, we also supply complete Isuzu engine assemblies.
Our expertise comes form specialization.

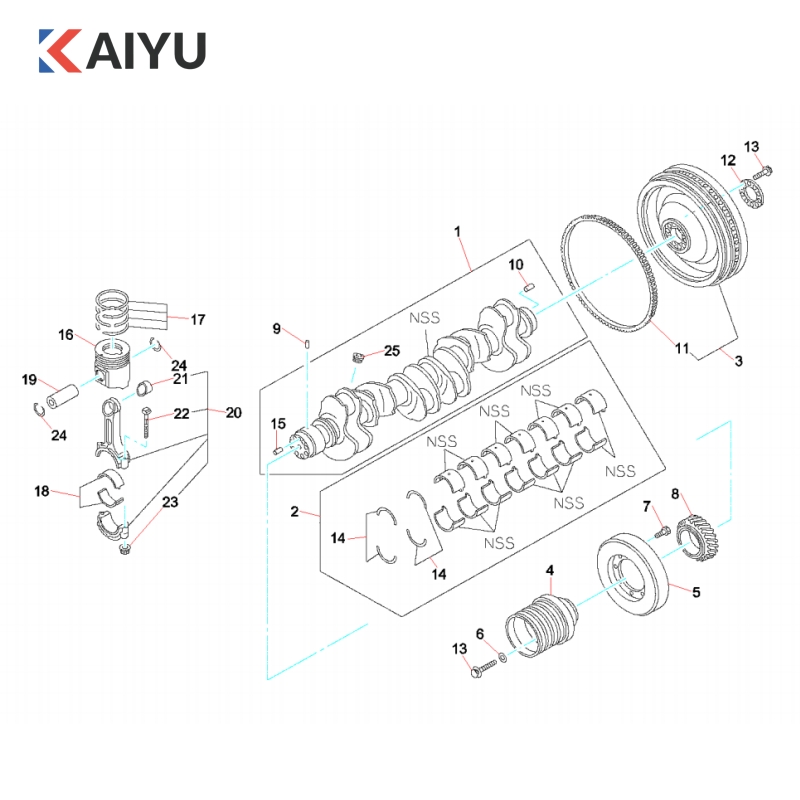

| Index | Part Name | Part NO. | QTY |
| 1 | Crankshaft | 60320302 | 1 |
| 2 | Metal kit;crankshaft,standard | 60320303 | 1 |
| 3 | Flywheel | 60320304 | 1 |
| 4 | Pulley;cr/shf | 60320305 | 1 |
| 5 | Damper;cr/shf | 60320306 | 1 |
| 6 | Plate;pulley | 60320307 | 8 |
| 7 | Bolt;damper | 60320308 | 8 |
| 8 | Crankshaft gear | 60016588 | 1 |
| 9 | Dowel | B229900005067 | 1 |
| 10 | shaft | B229900005064 | 1 |
| 11 | Gear;ring | 60320309 | 1 |
| 12 | Washer;flywheel | 60320310 | 1 |
| 13 | Bolt;flywheel | 60320311 | 18 |
| 14 | Washer;thrust,cr/shf | 60320312 | 2 |
| 15 | Pin;flange | 60320323 | 1 |
| 16 | Piston | 60320313 | 6 |
| 17 | Ring set;piston,standard | 60320314 | 6 |
| 18 | Metal set;conn rod,standard | 60320315 | 6 |
| 19 | Pin;piston | 60320316 | 6 |
| 20 | Rod asm; conn | 60320317 | 6 |
| 21 | Bushing;conn rod | 60320318 | 6 |
| 22 | Bolt;conn rod | 60320319 | 12 |
| 23 | Nut;conn rod | 60320320 | 12 |
| 24 | Ring;snap,piston pin | 60320321 | 12 |
| 25 | Plug | 60320322 | 6 |
Category: SY485/500/550 excavator spare parts
